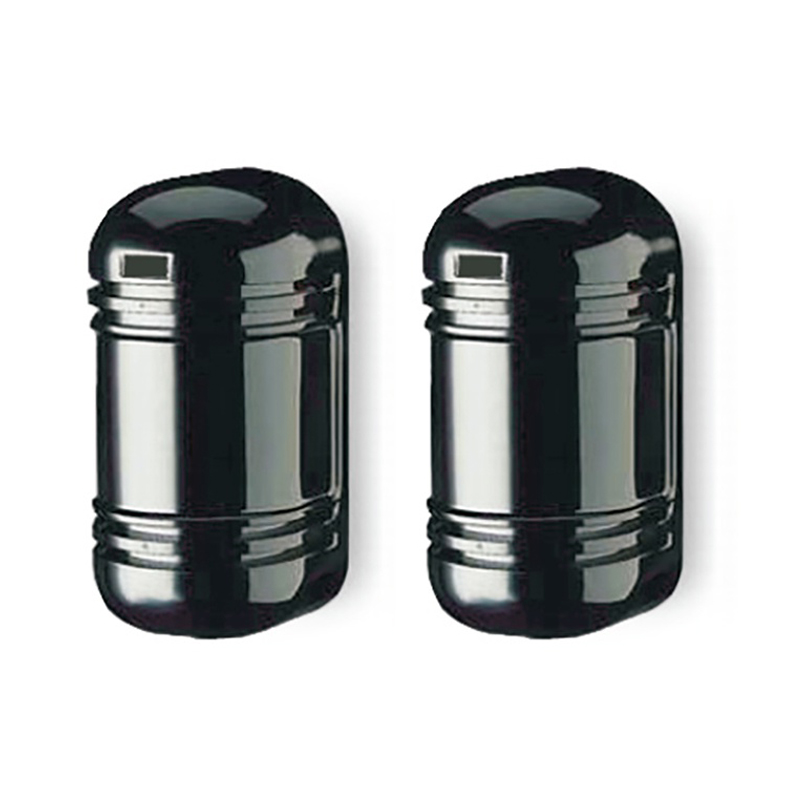

4030 Beam Sensor 100m

Description

A 100m Beam Sensor (e.g., the common ABT-100 model) is an outdoor, wired security device that uses multiple (typically dual) photoelectric infrared beams to create an invisible barrier up to 100 meters long. When an intruder simultaneously blocks these synchronized beams, the detector sends an alarm signal to a connected security system.

Key Features and Specifications

Detection Range: The maximum outdoor detection distance is 100 meters (300 meters for indoor use).
Beam Configuration: Typically uses dual beams to require both beams to be interrupted simultaneously, which minimizes false alarms from small animals, falling leaves, rain, or snow.
Technology: Employs active infrared (IR) digital pulse technology with advanced CPU and digital signal processing (DSP) chips for reliable detection and strong anti-interference capabilities.
Weatherproof Design: Built with a fully sealed, high-density ABS material and an IP55 or IP65 waterproof rating, suitable for harsh outdoor conditions like rain, frost, and direct sunlight.
Adjustability: Features adjustable vertical and horizontal optical axes (e.g., horizontal 180°, vertical 20°) and an adjustable beam interruption period (50msec to 700msec) to allow for precise alignment and sensitivity control.
Outputs: Provides standard Normally Open (NO) and Normally Closed (NC) relay contact outputs (AC/DC 30V/0.5A max), making it compatible with most wired alarm panels.
Power: Operates on a wide voltage range, typically DC 12-24V or AC 11-18V.
Installation Aids: Often includes features like a built-in laser alignment system or LED indicators to assist with accurate positioning.
